16mm Grooved Wood Panels for Acoustic Solutions

Dimensions:

The Panels can be manufactured to the desired size, with shop drawings produced by MCM Acoustical, thereby requiring no field cutting for faster installation. MCM Acoustical’s leading production capabilities make the largest panels in the industry: 5′ x 10′ (1.5M x 3M).

Standard grooving spacing is typically 8mm (5/16”), 16mm (5/8”) or 32mm (1 ¼”) while custom groove spacing is also available.

Veneers:

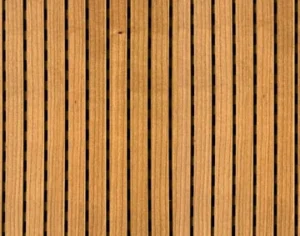

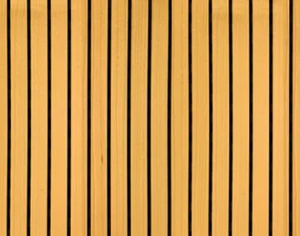

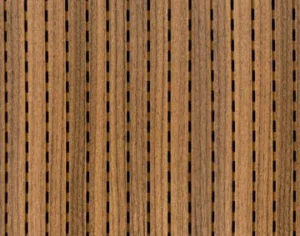

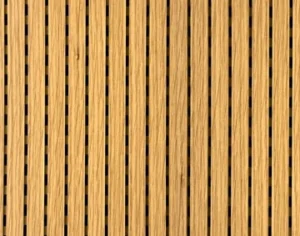

The Grooved Wood Panels can be customized in a variety of wood veneers. MCM Acoustical lays up its own veneer. For panels, we offer slip-matched, book-matched, or custom lay-up options.

Finishes:

The Grooved Wood Panels can be finished in standard clear lacquer or can be custom stained to match a control sample. The Panels can also be painted.

Fire
Performance

The Grooved Wood Panels are Class A Fire-Rated interior wood finish products as per ASTM E84 and CAN/ULC S102, and are tested in an accredited NVLAP test facility as a finished composite product using Class A individual components.

Acoustic
Performance

The grooved veneer surface, perforated core material, and black fiberglass mat at the rear combine to create a substantial acoustic performance of up to NRC of 0.90 enhanced by introducing an extra layer of sound absorptive fiberglass as a substrate material.

Acclimatization

Like any other architectural natural wood product, the Grooved Wood Panels are to be acclimatized inside a controlled interior environment for at least 72 hours before installation. During storage, prior to installation, during installation, and after installation the relative humidity level of 35%-55% and a temperature range of 20°-27°C (68°-81°F) must be maintained.

Sustainability

FSC Certified
70.8% pre-consumer recycled content
Declare label
CDPH VOC Certified

Indoor Air
Quality

The Grooved Wood Panels are certified Clean Air Gold and meet the CDPH Standard VOC emissions.
